Portable H2 Gas Detector 0~1000ppm LCD Display Rechargeable Li-Battery Powered Alarmable Handheld Digital Hydrogen Gas Monitor Meter Tester Analyzer with Sampling Pump

H2 GAS MONITOR DETAILED SPECIFICATIONS Gas type:Hydrogen gas(H2) Gas measurement range: 0~1000ppm Resolution:1ppm Working principle:electrichemical sensor Low/High alarm/Alarm setting: Yes Alarm : sound, light alarm with vibration, adjustable alarm values, alarm sound up to 80db Operating temperature: -10~50C Operating humidity:15~95%RH(standard) Store Temperature: 0~40C Operation current : 160mA, Short circuit current <3A Protection level: IP65 Power: Built-in 3.7V rechargeable li-battery Product Net Weight: 200g Size : 120.2*64.5*38.3mm H2 GAS MONITOR PACKING 1 x H2 gas monitor 1 x User manual 1 x Charging adaptor 1 x USB cable 1 x Hand carry case 1 x Calibration certificate 1 x CNEX certificate 1 x Gift paper box SAMPLING PUMP FEATURES 1. This sampling pump is an accessory specifically developed this gas detector, It helps the gas detector detect gas concentraion of narrow or complicated environments,air flow velocity is about 0.5 cubic inches per hour,maximun gas sample collecting distance is about 50 feet, providing higher sensitivity for the detector effectively. 2. It does not operate independently,it needs to work with the voltage from the gas detector.Therefore,the sampling pump must be connected to the detector with 2 screws,please do not connect any other voltage power supply to the sampling pump to avoid burn out the pump. 3. When you are using the sampling pump,please ensure tighten up the sampling pump to the gas detector with 2 closed type screws,avoiding poor contact. DETAILED SPECIFICATIONS Color: Black Operating voltage range: DC 2.2V-3.2V Working current:<280mA Nozzle diameter: 2.5mm Minimum operating voltage:2.2V Noice :<75 dB Size:100.8*62.3*50mm Standard packing:sampling pump/user manual/soft rubber tube(500mm long)

• 〖High Sensitive Sensor & Accurate Measurement〗Portable H2 gas monitor,Bulit-in high senstive electrochemical sensor measuring range 0~1000ppm with resolution 1ppm, can accurately detect H2 concentration in air. and the professional sampling pump can help you more accurately detect narrow or remote places Hydrogen gas concentration.
• 〖High/Low Alarm Function & Alarm value Adjustable〗When Hydrogen gas concentration reaches preset high or low alarm value,the H2 meter will Sound, light alarm with vibration,factory preset low alarm value is 50ppm, and high alarm value 100ppm.Meanwhile, high/low alarm value is adjustable based on your specific requirements.

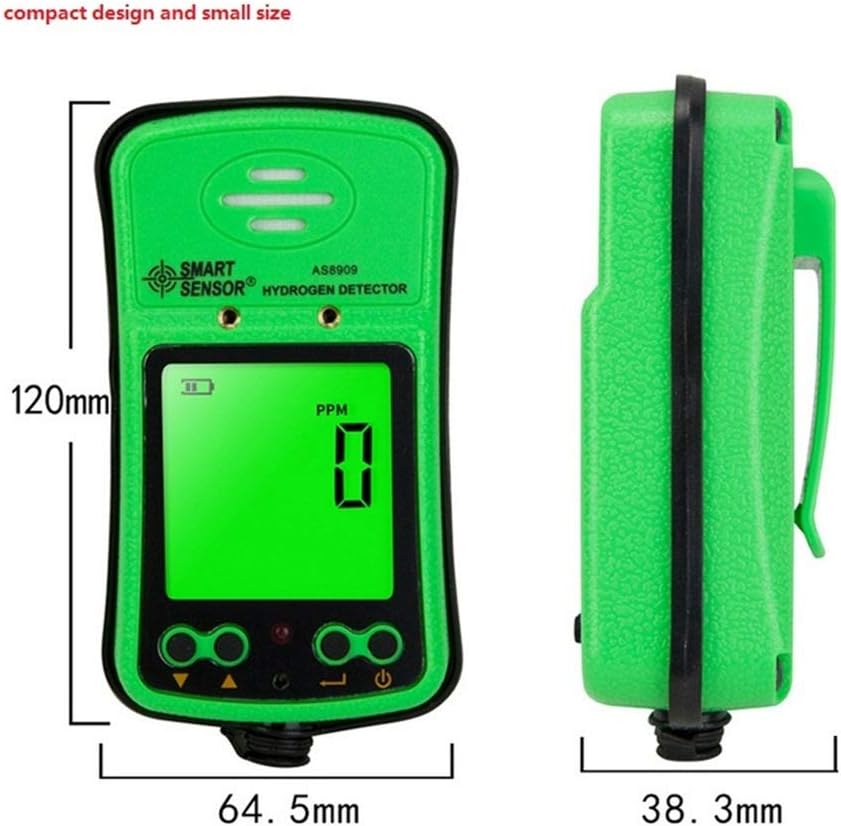

• 〖Digital LCD Display with backlight & Compact and Small Size Design〗High density digital LCD screen display real time H2 gas concentration value, backlight activating function is good for use even in dark areas ;compact size and unique clip design, it is convenient for your to carry around.
• 〖Rechargeable Li-Battery Powered & Durable Power Supply〗Bulit-in rechargeable 3.7V Li-thion battery Powered,can work continuousely 8-12 hours with full charge(slightly vary with working condition).
• 〖Strict Inspection and Qualified Explosive Proof Certificated〗This product is compiled with following standard and regulation: JJG693; JJG695: JJG915 and GB3836 series anti-explosion standard.
